Charlestown Crossing Pumping Station

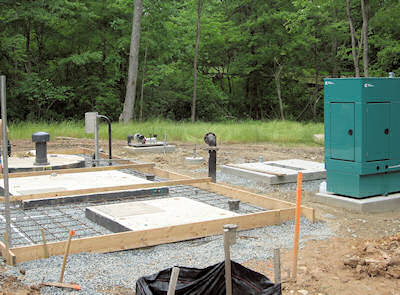

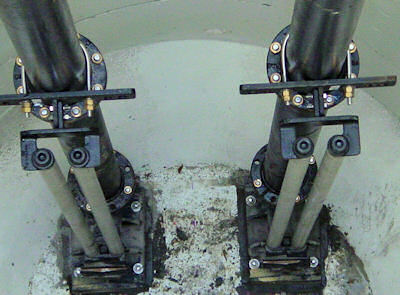

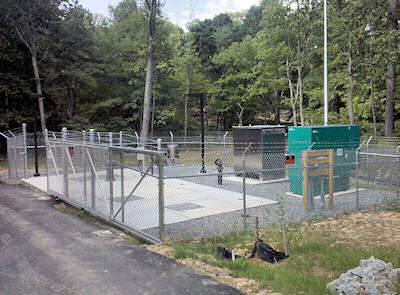

Guide rail pipes resting on QDC’s. Flowserve 60HP pump. Valve vault piping pre-installed. Onsite construction of station pad. Final job site with fence and paving.

Location: Charlestown, Maryland
Engineering Firm: Taylor, Wiseman & Taylor

Scope of Project:
Wet Well – 8ft Diam. x 31ft deep. Contains two 60HP Flowserve Type 4MSX submersible pumps with a design point of 500 gpm @ 110ft TDH. Two 6” DIP from wet well merging to one 8” line out of vault. Wet well includes a 4” PVC vent, 6” DIP bypass, and a debris basket ladder.

Valve Vault – 8ft x 8ft x 7ft deep with tapered floor and drain back to wet well. Piping includes 6” & 8” DIP, 2 Dezurik PEC Plug Valves, two 6” Crispin SWL check valves w/ air cushion, and Weiss pressure gauges.

Flowmeter Vault – 5ft x 5ft  x 7ft deep with tapered floor with drain back to wet well and an 8” ABB Magmaster flowmeter.
